Magnetic drive pumps (Series PMD)
Magnetic Drive Technology In a seal – less magnetic drive centrifugal pump, the external magnet connected directly to the motor shaft and it transmits the torque to the internal magnet. Get top-quality Magnetic Drive Pumps Manufacturer in Surendra Nagar, India. We offering high-efficiency and reliable PMD Magnetic Drive Pumps in India. The Magnetic field created produces a rotation without physical contact between the parts so the impeller spins and moves the fluid. The rear casing is placed the two magnet joints and it hermetically closes the hydraulic part from the motor.
| Magnetic Pump Models | |||||||||
| Pump Data | Electric Motor Data | ||||||||
| Model | Hose Connection | Thread Connection | Flow Lpm | Flow LPH | Head Meters | HP | Watts | Phase | AMPS |
| PMD 15 | 14 x 14 mm | —— | 15 | 900 | 2.5 | 0.1 | 75 | SINGLE THREE | 0.4 |
| PMD 30 | 18 x 18 mm | —— | 30 | 1800 | 4 | 0.16 | 120 | SINGLE THREE | 0.64 0.32 |
| PMD 50 | 20 x 20 mm | ½” x ½” BSP | 50 | 3000 | 45 | 0.25 | 186 | SINGLE THREE | 1 0.32 |
| PMD 85 | 26 x 26 mm | 1” x 1” BSP | 85 | 5100 | 9 | 0.5 | 370 | SINGLE THREE | 3 1 |
| PMD 125 | 26 x 26 mm | 1” x 1” BSP | 125 | 7500 | 12 | 0.75 | 530 | SINGLE THREE | 4 13 |
| PMD 170 | ———– | 1” x 1” BSP | 170 | 10200 | 14 | 1 | 745 | SINGLE THREE | 5 1.8 |
| PMD 300 | ———– | 11/2” x 11/2” FLANGE | 270 | 16200 | 18 | 1.5 | 1100 | SINGLE THREE | 8 2.4 |
| PMD 400 | ———– | 11/2” x 11/2” FLANGE | 350 | 21000 | 21 | 2 | 1500 | SINGLE THREE | 10 3.1 |
| PMD 500 | ———– | 2” x 11/2” FLANGE | 450 | 27000 | 27 | 3 | 2230 | THREE | 4.6 |
| PMD 650 | ———– | 2” x 11/2” FLANGE | 600 | 36000 | 32 | 5 | 3720 | THREE | 7.3 |
Performance Curve 50H2 / 230-415v AC/ Water

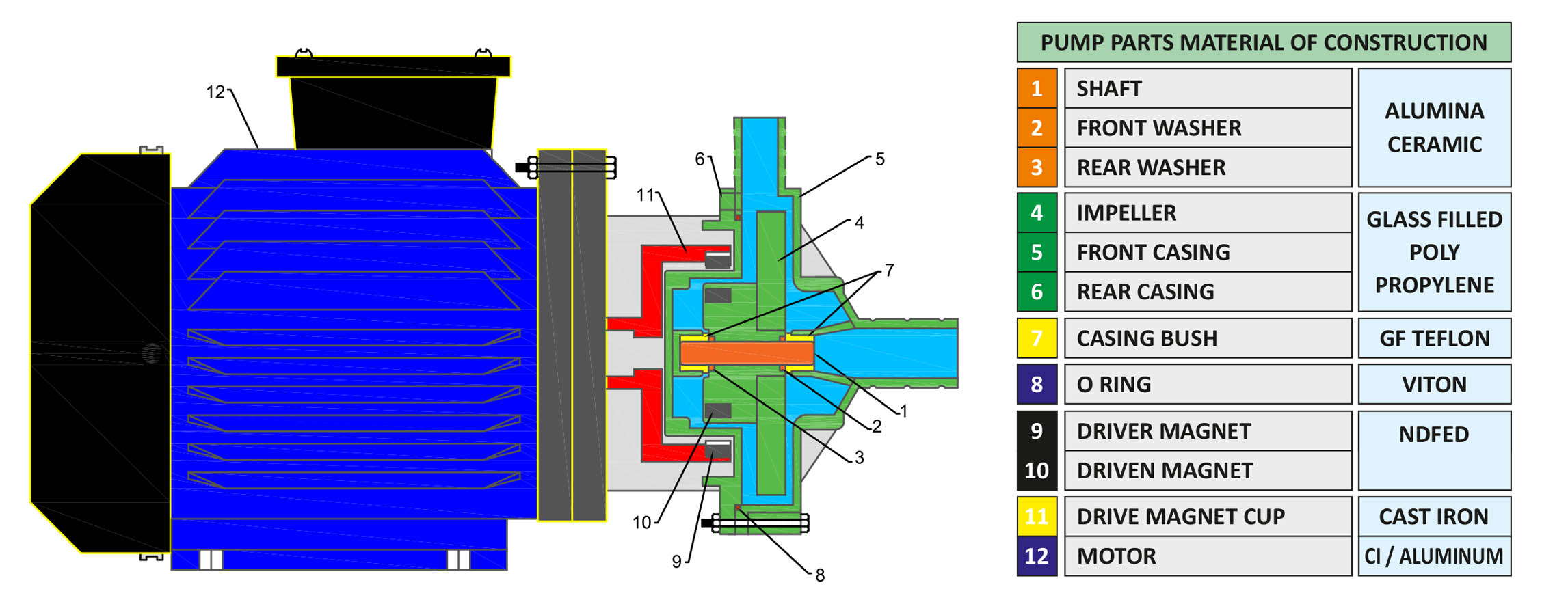

Material of Construction

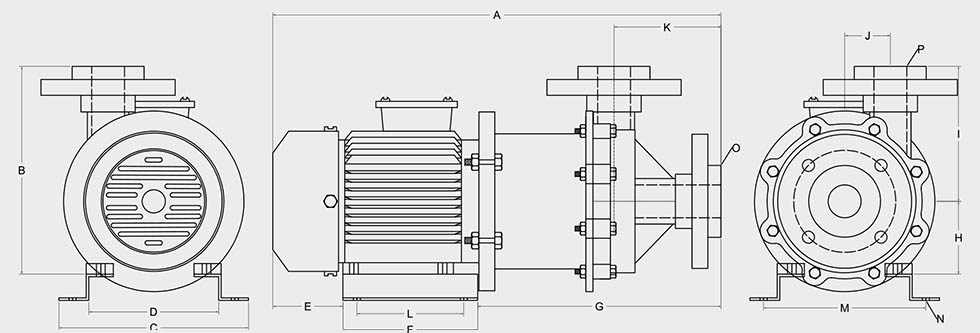

Pump Dimensions
| MODEL | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O |
| PMD 15 | 241 | 120 | 133 | 85 | 60 | 59 | 118 | 62 | 58 | 22 | 37 | 36 | 109 | 10 | 14 |
| PMD 30 | 252 | 127 | 133 | 85 | 74 | 59 | 120 | 62 | 65 | 28 | 39 | 36 | 109 | 10 | 18 |
| PMD 50 | 292 | 143 | 133 | 85 | 80 | 59 | 153 | 62 | 79 | 35 | 54 | 36 | 109 | 10 | 20 |
| PMD 85 | 355 | 166 | 136 | 81 | 46 | 126 | 183 | 72 | 94 | 35 | 62 | 85 | 109 | 10 | 26 |
| PMD 125 | 373 | 171 | 148 | 90 | 56 | 132 | 183 | 79 | 92 | 38 | 62 | 97 | 117 | 10 | 26 |
| PMD 170 | 359 | 169 | 148 | 90 | 56 | 132 | 169 | 79 | 90 | 38 | 45 | 97 | 117 | 12 | 1”BSP |
| MODEL | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
| PMD 300 | 511 | 285 | 264 | 172 | 73 | 200 | 238 | 131 | 154 | 52 | 122 | 145 | 229 | 12.5 | 1.5” Flange | 1.5” Flange |
| PMD 400 | 557 | 293 | 272 | 182 | 77 | 200 | 270 | 137 | 156 | 52 | 122 | 150 | 238 | 12 | 1.5” Flange | 1.5” Flange |
| PMD 500 | 597 | 314 | 299 | 211 | 96 | 251 | 243 | 148 | 166 | 68 | 107 | 200 | 266 | 12.5 | 2” Flange | 1.5” Flange |
| PMD 650 | 638 | 326 | 326 | 211 | 96 | 251 | 243 | 160 | 166 | 75 | 109 | 200 | 292 | 12.5 | 2” Flange | 1.5” Flange |
Model : PMD15 / 30 / 50 / 85 / 125 / 170
Model : PMD 300 / 400 / 500 / 650
Application
- Chemical Industries
- Electroplating Industries
- Etching Machines
- Dairy Boilers
- Medical Equipment’s
- Metal Working Machines
- X-Ray Film Plants
- Pharmaceutical Industries
- Metal Finishing Equipment’s
- Galvanizing Plating
- Air Condition Units
- Beverages Industries
- Photoengraving Process
- Liquid Circulation
- Textile Processing & Dying
- Food Processing Industries
- Anodizing Plating
- Silver Recovery System
- Coolant Pumping
- PCB Plants
- Descaling
- Laboratory Equipment’s
- Filtration Units
- Agitation Descaling
- Heat Exchangers
- Machine Tools
- Acid Handling
- Solar Heating System
