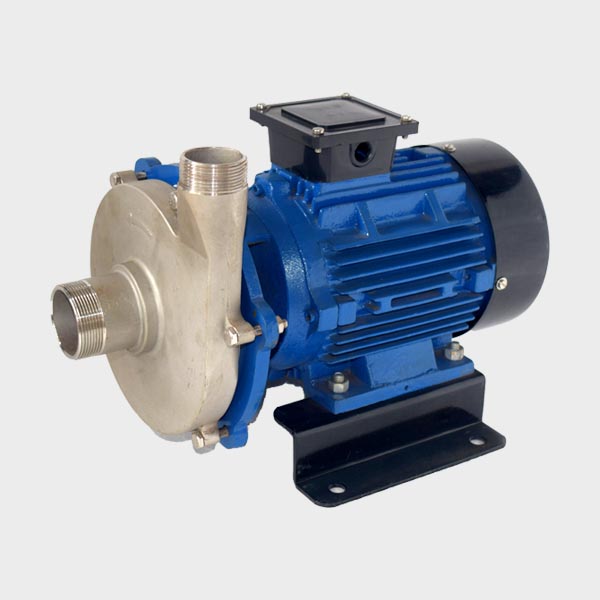

SS316 CF8M Centrifugal Pump (Series CNR)

Feature

Single stage horizontal Centrifugal Pump.
Pumps Designed according to DIN 34256 & ISO 2858
Hight Level Of Durability and Reliability
Quick disassemble and reassemble
Cost effective with low running and maintenance costs.
Compact in design for less space occupation.
Heavy Duty one piece casting of SS316 parts with streamlined volute design gives high efficiency with outstanding performance and power savings.

Model	Size	HP	PERFORMANCE DATA: HEAD (METERS) / FLOW (LPM)
HEAD			6	8	10	12	14	16	18	20	22	24	26	28	32	35	40
CNR 2	1” X 1”	0.5	122	102	84	66	48
CNR 2A	1.5“ X 1.5”	0.5		200	152	60	22
CNR 3	1” X 1”	1			160	140	128	120	98	90	70	40
CNR 3A	1” X 1”	1		248	225	184	142
CNR 4A	1.5” X 1.5”	1.5						186	170	152	143	122	82
CNR 5A	2	2								230	198	180	122	85
CNR 5B	2	2				320	290	241	174	115
CNR 6A	3	3								230	216	200	191	180	144	73	24
CNR 6B	3	3				372	341	320	282	266	245	220
HEAD				16	20	24	28	32	36	40	44	48	52	54	56	58	60
CNR 7A	2” x 1.5	5						260	230	190	140	88	32
CNR 7B	2.5” X 2”	5		645	572	518	300	210	145
CNR 8A	2” X 1.5	7.5						290	270	250	230	190	126	120	60
CNR 8B	2.5” X 2”	7.5			780	700	640	570	470	275
CNR 9A	2” X 1.5”	10				500	480	470	450	430	390	340	300	260
CNR 9B	2.5” X 2”	10						700	650	590	492	385

No.	Description	Material
1	Casing	SS 316
2	Impeller	SS 316
3	Back Plate	SS 316
4	Gasket	PTFE Teflon
5	Mechanical Seal	TC, SIC, Carbon with PTFE Elastomers
6	Shaft	SS 316
7	Bracket	Cast Iron
8	Motor	Cast Iron / Aluminium
